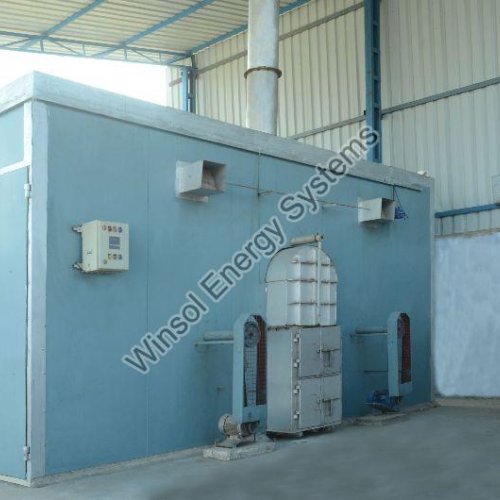

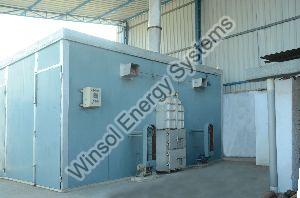

Forced Hot Air Treatment Plant
| Business Type | Manufacturer, Exporter, Supplier |
| Type | ISPM15 |
| Power | 6 HP |
| Warranty | 1 Year |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Brand Name
Winsol Energy Systems
Model Number
WES200
Place of Origin
Anand
Material
MS Sheet, Glass wool,High Density Glass Wool, Galvanized sheet etc.
Payment Terms
T/T, Other
Delivery Time
1,2 months
We are one of the trusted Manufactures and Exporters of Forced Hot Air Treatment Plant. We manufacture Forced Hot Air Treatment Plant strictly as per ISPM-15. Our plant has been widely acclaimed for its easy & safe operation. Our Forced Hot Air Treatment Plant is optimized to be fuelled by diesel fuel/gas fired/waste wood fired plant.
Features :
- Supply more than 50% plant in india with complete project work,
- That plant is run by diesel fuel/gas fired/waste wood fired plant
- Easy operating systems
- Zero maintained system
- Easy transferable from one place to other place
- Lower prize compare to other supplier
- Pallet cost is very low approx 3-4RS/PALLET
- Operation cycle IS 2-3hrs.
- Available within 30 days
- Accept complete project work
- Renewal ISPM 15 plant as per directorate of PPQS.
- Our containerized plant is highly success in India Our diesel fired plant is pollution free (FREE FROM SOx,NOx)
- Our all clients are highly satisfied with our products
- Service after sales is our motto.
Technical Specification
| Particulars | WPS-250 Pallets Wood Waste Fired (Box Panel Type) | WPS-225 Pallets Wood Waste Fired (Box Panel Type) | WPS-200 Pallets Wood Waste Fired (Box Panel Type) | WPS-125 Pallets Wood Waste Fired (Box Panel Type) | WPS-100 Pallets Wood Fired (Box Panel Type) | WPS-50 Pallets Wood Fired (Box Panel Type) |
| Electricity Power - 3 Phase | 8.00 HP | 8.00 HP | 7.00 HP | 6.00 HP | 3.00 HP | 3.00 HP |
| Size of Plant | 27'-0” Long x 17'-0” W x 10'-0” Ht. (civil construction) | 24'-0” Long x 17'-0” W x 10'-3” Ht. (civil construction) | 20'-6” Long x 18'-0” W x 10'-0” Ht.O/O (Box Panel Type GI Sheet) | 17'-0” Long x 17'-0” W x 10'-0” Ht. (MS Steel Container) | 18'-0” Long x 10'-0” W x 10'-0” Ht. (MS Steel Container) | 14'-0” Long x 10'-0” W x 10'-0”Ht. (MS Steel Container) |
| Approx. Wood fire consumption per hour | 15 – 20 kg/hr | 15 – 20 kg/hr | 15 – 20 kg/hr | 10 – 15 kg/hr | 10 – 15 kg/hr | 10 – 15 kg/hr |
| Approx. Diesel consumption per hour | 10-12Ltr./Hr | 9-10Ltr./Hr | 9-10Ltr./Hr | 8-10 Ltr./Hr | 6-8 Ltr./Hr | 6-8 Ltr./Hr |
